Having trouble figuring out how to add a depth finder to your pontoon boat? You’ll want to know the right spots to place the transducer and how to set up the display so it’s easy to see while you’re out on the water.
By the end, you’ll have a clear plan for installing your depth finder properly and testing it before heading out on your next trip.
Pick the Best Transducer Spot on Your Pontoon
The best transducer spot on your pontoon is on the rear of a pontoon tube, typically where a factory bracket is already welded. Position it on the starboard side to achieve a clearer sonar path, but ensure the transducer sits low enough to stay submerged at your boat’s cruising speed. Keep the sensor in clean water by avoiding areas disturbed by water turbulence from prop wash or your pontoon’s center strake. Since the center strake churns up the flow, mount the transducer offset toward port or starboard to stay in calmer water. A low, level position parallel to the waterline prevents lost bottom readings when on plane. Adjust the transducer height to protect it from debris while maintaining consistent readings both at rest and underway. For the most accurate readings, the transducer must remain parallel to the waterline even when the boat is on plane. When choosing a mounting location, consider how the anchor light provides reliable illumination for your sailboat. To best secure wiring at the helm, a Bluetooth marine radio offers cordless connectivity and clear communication.
🛥️[Product Overview] Stern Pad, Screwless Transducer Mounting Plate kit, Marine-Grade Transducer Mounting Board Hardware Kit.
【Enjoy Fishing Life Better】 Frustrated because the picture on your electronics wasn’t the same as advertised? 7400931 MHX XNT Transducer Bracket is a nice addition for your boat that helps your skimmer transom mount transducer to find fish easier to find and get the right scan image. Efficiently improve your transducer running performance without letting go of any fish!
Complete Kit for Easy Installation: Our no drill transducer mount kit includes all necessary accessories for a seamless installation: 1 transducer pad block, 1 scouring pad, 1 cleaning wipe, and 3 black cable clips; Simply clean the installation surface, peel off the adhesive, align the position, and press firmly for a few minutes; (Note: Please wait 18 hours before mounting the transducer to ensure the adhesive sets firmly, reducing the risk of detachment during use
Gather Marine-Grade Tools and Stainless Hardware
To mount your depth finder, you need to gather marine-grade tools and stainless hardware. Use 316 stainless fasteners—screws, washers, nuts, and bolts—since 304 stainless won’t withstand saltwater exposure. Have a drill with appropriate bits, a countersink, masking tape, and a matching screwdriver ready. Applying anti-seize lubricant on stainless-to-stainless threads prevents galling and makes future adjustments easier. Pairing your unit with a compatible charger ensures the battery stays reliable for long days on the water. For critical engine monitoring, selecting a mechanical oil pressure gauge ensures reliable pressure readings even in harsh conditions.
For electrical wiring and battery connections, select corrosion-resistant terminals and marine-grade wire. Always bed fasteners that penetrate the deck in marine sealant to prevent water intrusion. Organize your hardware kit with stainless screws, flange nuts, and washers sized specifically for your installation. Include thread lubricant and protective bedding material to ensure secure, durable connections. Having all necessary hardware on hand saves time, avoids replacements mid-project, and guarantees a long-lasting depth finder installation. Review top fish finder comparisons to ensure your chosen unit suits your boat’s specific needs.
Superior Resistance to Rust & Corrosion When Compared to Common Stainless Kits
Superior Resistance to Rust & Corrosion When Compared to Common Stainless Kits
Superior Resistance to Rust & Corrosion When Compared to Common Stainless Kits
Mount the Display Where You Can See It at the Helm
Mount the display where you can see it at the helm. Position it directly in your line of sight, near your normal seated or standing eye level. This ensures quick readability while steering and helps prevent neck strain from looking up or down excessively.
Use a tilt-adjustable mount to align the screen for a face-on view, optimizing visibility regardless of your seating position. Be careful not to block your steering, throttle, or gauges, and avoid placing the display overhead, which forces you to look away from the water. Keep the unit within easy reach to make quick menu adjustments without losing focus. When choosing your unit, remember that saltwater fish finders are built to withstand harsh marine environments and corrosion.
Make sure your console has enough clearance for the bracket and wiring. Route cables behind the dash to prevent snagging or damage, maintaining a clean and safe setup. A stable, level mount at the helm allows you to scan sonar readings effortlessly, whether you’re cruising or docking, ensuring safe and efficient navigation.
Install the Transducer Under the Pontoon for Clean Sonar
Install the transducer under the starboard pontoon about 1/8 inch below the bottom to ensure it stays in turbulence-free water. Choose a rear-side location on the pontoon, away from the center strake and propeller wash, to optimize hydrodynamic efficiency. Secure it with stainless steel hardware and marine-grade sealant to prevent leaks and corrosion. Make sure the transducer is level side-to-side so it provides accurate readings; an incorrect angle can distort returns. Position it firmly but allow it to pivot upward if struck, simplifying future maintenance. For a complete audio upgrade, pairing quality sonar gear with a marine sound bar can enhance your on-water entertainment. Test the setup on the water and adjust the depth or angle if readings are noisy or unstable to improve water contact and reduce turbulence. Understanding marine radio basics helps ensure you can communicate clearly when troubleshooting sonar performance. For a clean installation, follow the step-by-step guide provided in the Garmin Striker 4 instructions to ensure proper wiring and mounting.
Safer: Install a Transducer Mounting Kit between the sensor and the trolling motor to make driving safer
Replace Part: 000-12603-001 Transom Transducer Mount Bracket
🛥️[Product Overview] Stern Pad, Screwless Transducer Mounting Plate kit, Marine-Grade Transducer Mounting Board Hardware Kit.
Route the Transducer Cable Without Pinching or Snagging
To route the transducer cable without pinching or snagging, follow a careful, deliberate path that avoids potential hazards. Start by planning a protected route to the display, utilizing existing wiring runs when possible to minimize exposed cable length. Keep the cable away from moving parts such as propellers, trolling motors, and steering hardware to prevent damage during operation. When passing through bulkheads or panels, use grommets to prevent chafing or cuts in the jacket. Additionally, avoid areas with electrical noise such as ignition wires and batteries to prevent interference with signal quality. Avoid sharp bends that can pinch the cable jacket or damage internal conductors; instead, use gentle curves and the shortest practical path to reduce slack. For a typical ice fishing setup, selecting a Lowrance fish finder with a high-quality transducer ensures reliable performance. Understanding key sonar settings like sensitivity and frequency helps you interpret the display for more accurate fishing. Those seeking a complete dashboard upgrade might compare the accuracy of a top gauge set with integrated GPS functionality. Secure the cable at regular intervals with cable ties or clamps, leaving a relaxed fit to avoid crushing the cable inside. Reinforce support near exits and turns where vibration and movement are highest, ensuring the cable remains stable. When crossing other cables, do so at limited points rather than bundling everything tightly, and leave small loops of slack away from walkways and rotating components. Finally, after completing the route, recheck the cable’s position once the boat is in its normal operating orientation to ensure no pinch points or snag places develop. Proper routing not only protects the cable but also maintains the overall safety and performance of your system.

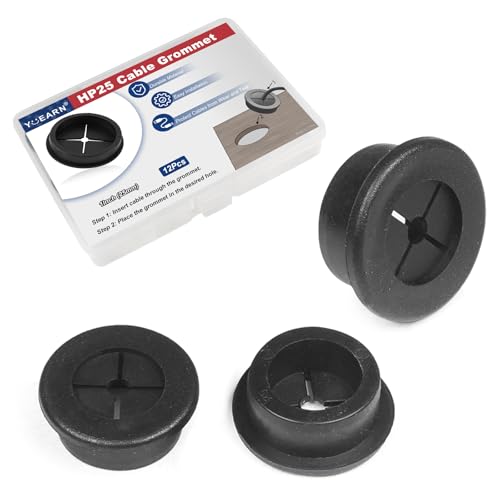

[Cable Cord Grommet] The fit hole diameter of these flexible rubber grommets is 25mm/1inch, and the total size is 30x18x10mm/1.18x0.7x0.47inch (Max.D*ID*H). The package includes 12 pcs wire hole cover, which is sufficient to meet your daily needs
